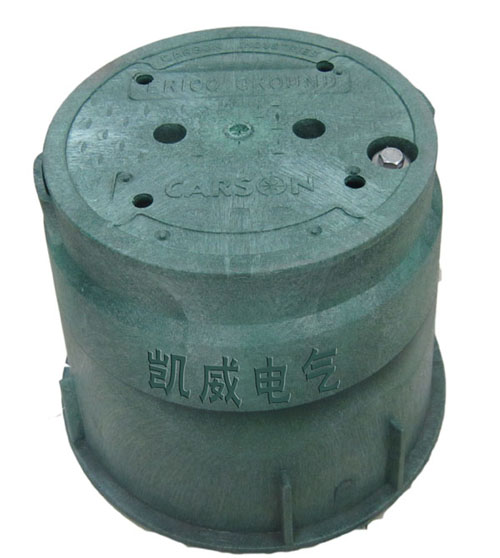

Inspection Housing T416BH
Features
1、Pedestrian load rating
2、Suitable for lighter load rating applications in turf
3、Chemical, UV and corrosion resistant
4、SIZE:3/8" x 1 3/4" (44 mm) stainless steel lock bolt included
5、Boxes and covers nest in 3 1/4" (83 mm) increments
6、Two 3 1/2" x 1 1/2" (89 x 38 mm) knockouts per box
7、T416BH includes four additional holes in the cover to allow water to enter the inspection well, typically for use with chemical ground rods.
Product Specifications
|
Part Number |
T416BH |
|
Material |
High Density Polyethylene (HDPE) |
|
Color |
Green |
|
Load Rating |
0.15 kg/cm2 |
|
Diameter, Grade Level (DG) |
260 mm |
|
Outer Diameter (OD) |
333 mm |
|
Height (H) |
254 mm |
|
Unit Weight |
2 kg |
|
Standard Packaging Quantity |
1 pc |
|
UPC |
78285675058 |
|
UNSPSC |
39121613 |
|
ETIM |
EC002874 |
|
Suppliers |
KaiWei International |
